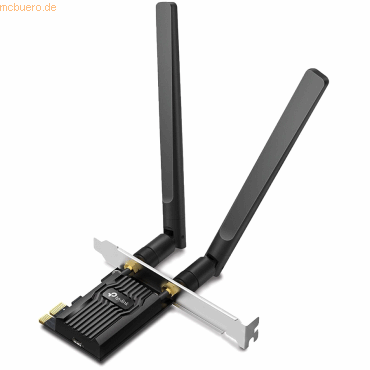

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

TP-Link Archer TX20E PCIe Adapter — AX1800 Wi‑Fi 6 + Bluetooth 5.2

Overview

The Archer TX20E is a dual-band PCIe wireless adapter designed to bring next‑gen Wi‑Fi 6 performance and Bluetooth 5.2 to compatible desktop PCs.

Key Features

• Unrivalled Wi‑Fi 6 speed: Up to 1201 Mbps on 5 GHz + up to 574 Mbps on 2.4 GHz (dynamic rates)
• Wider signal coverage: Two external high‑gain dual‑band antennas for improved range and stability
• Bluetooth 5.2: Up to 2× faster speed and 4× broader coverage compared with Bluetooth 4.2
• Improved security: Supports the latest WPA3 enhancements for better protection
• Backward compatibility: Works with existing 802.11 a/b/g/n/ac networks

Technical Specifications

• Wireless standards: IEEE 802.11ax/ac/n/a (5 GHz), 802.11ax/n/g/b (2.4 GHz)
• Bluetooth: 5.2
• Maximum signal rate: 5 GHz: 11ax up to 1201 Mbps (dynamic); 2.4 GHz: 11ax up to 574 Mbps (dynamic)
• Security: 64/128‑bit WEP, WPA/WPA2/WPA3, WPA‑PSK/WPA2‑PSK, 802.1x
• Antennas: 2× high‑gain dual‑band
• Weight: 0.3430
• Brand: TP‑Link

System Requirements

• Operating system: Windows 11 / Windows 10 (64‑bit) only
