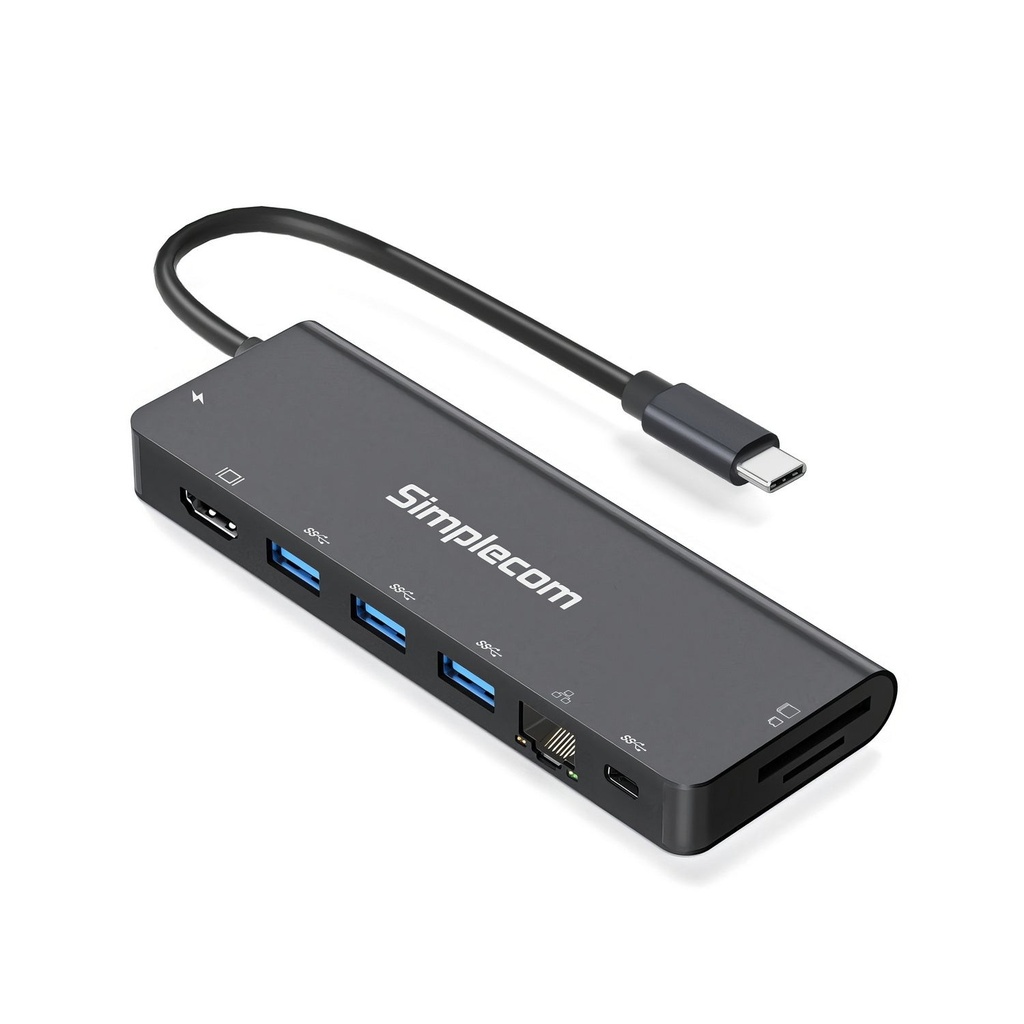

Simplecom USB-C 9-in-1 Multiport Docking Station

Simplecom CHT590 USB‑C SuperSpeed 9‑in‑1 Multiport Docking Station with HDMI 2.0, Gigabit Ethernet, SD/MicroSD, and 100W USB‑C Power Delivery.

Overview

CHT590 is a portable all‑in‑one USB‑C multiport docking station that expands a single USB‑C port into nine ports, helping you connect multiple devices at once for improved productivity and convenience.

Ports & Connectivity

• USB Hub: 3× USB‑A (SuperSpeed 5Gbps) + 1× USB‑C (SuperSpeed 5Gbps)
• Video: HDMI 2.0 (up to 4K@60Hz)
• Network: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Card Reader: SD + MicroSD (SuperSpeed 5Gbps)
• Charging: USB‑C PD input (charging only), up to 100W (PD 3.0)

Key Features

• 9‑in‑1 USB‑C multiport docking station for comprehensive expansion
• Single USB‑C to extra USB ports, HDMI 2.0, Gigabit Ethernet, card reader and PD
• SuperSpeed USB ports support data transfer rate up to 5Gbps
• HDMI 2.0 supports Mirror or Extended mode up to 4K@60Hz
• Gigabit Ethernet supports connection speeds up to 1000Mbps for a stable, low‑latency connection
• 2‑slot SD/MicroSD card reader with SuperSpeed data transfer
• Durable stylish aluminium alloy housing for heat dissipation and stable performance
• Lightweight and portable; built‑in flexible USB‑C cable
• Plug & play, no driver software required

Technical Specifications

• Host Interface: USB‑C
• HDMI Resolutions: up to 3840 × 2160 @ 60Hz (4K@60Hz)
• Operation Temperature: 0–45°C
• Housing Material: Aluminium
• Dimensions: 13 × 4.7 × 1.4 cm
• Cable Length: 19 cm
• Weight: 88 g

System Requirements

• USB‑C port with DisplayPort Alt Mode (DP Alt Mode) support
• Thunderbolt USB‑C port or USB4 port on laptop
• Operating system: Windows 10 or above, macOS 10.12 or above
• GPU requirement: DP1.4 for up to 4K@60Hz; DP1.2 for up to 4K@30Hz

Important Notes

• Please confirm your device USB‑C port supports DP Alt Mode. Some USB‑C ports only support charging or data (no video output).
• USB‑C power adapter (PD charger) is not included.
• 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile processors or later).
• The USB‑C PD port is for PD charging only (not for data transfer).
